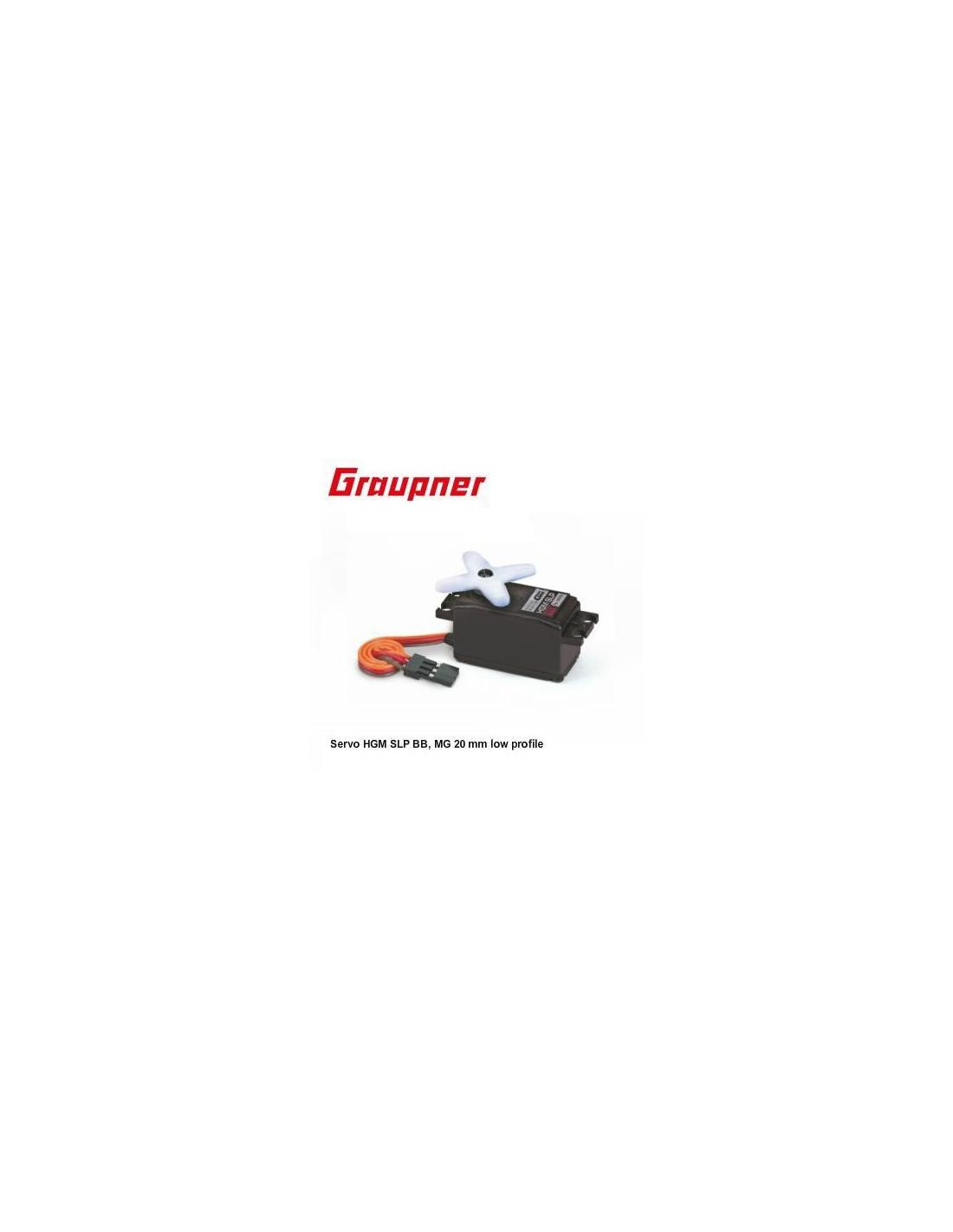

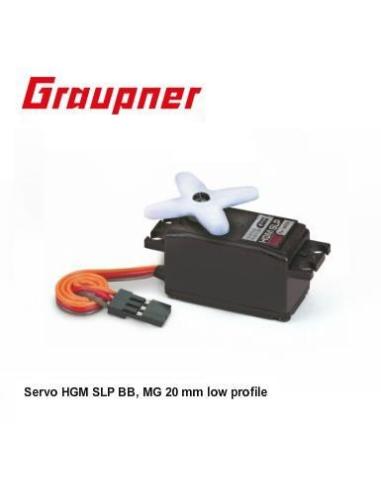

94050 Servo HGM SLP BB, MG 20 mm low profile
94050 Servo HGM SLP BB, MG 20 mm low profile

94050 Servo HGM SLP BB, MG 20 mm low profile

94050
Consultar disponibilidad
59,90 €
Impuestos incluidos
Servo HGM SLP BB MG de perfil bajo para coches tipo Turing 1/10.


Avísame cuando esté disponible




Dimensions (LxWxH) 40,5 x 19,5 x 25,5  mm
Operating voltage 4,8 ... 8,4  V
Angular travel incl. trim, approx. 2 x 45  °
Replacement gearbox 94050.2
Gear unit Getriebe mg
All-up weight, approx. 43  g
Holding torque 6.0V, approx. 100  N/cm
Holding torque 7.4V, approx. 120  N/cm
Bearings Lager bb2x
No-load current drain, approx. 31  mA
Torque at 6.0V, approx. 45  N/cm
Torque at 7.4V, approx. 55  N/cm
Transit speed at 6.0 V, approx. 0,045  Sek/40°
Transit speed at 7.4V, approx. 0,035  Sek/40°
Charging rate at 6.0V approx. 2100  mA
Charging rate of 7.4V approx. 2550  mA







MODELO_DE_SERVO
Analógico
