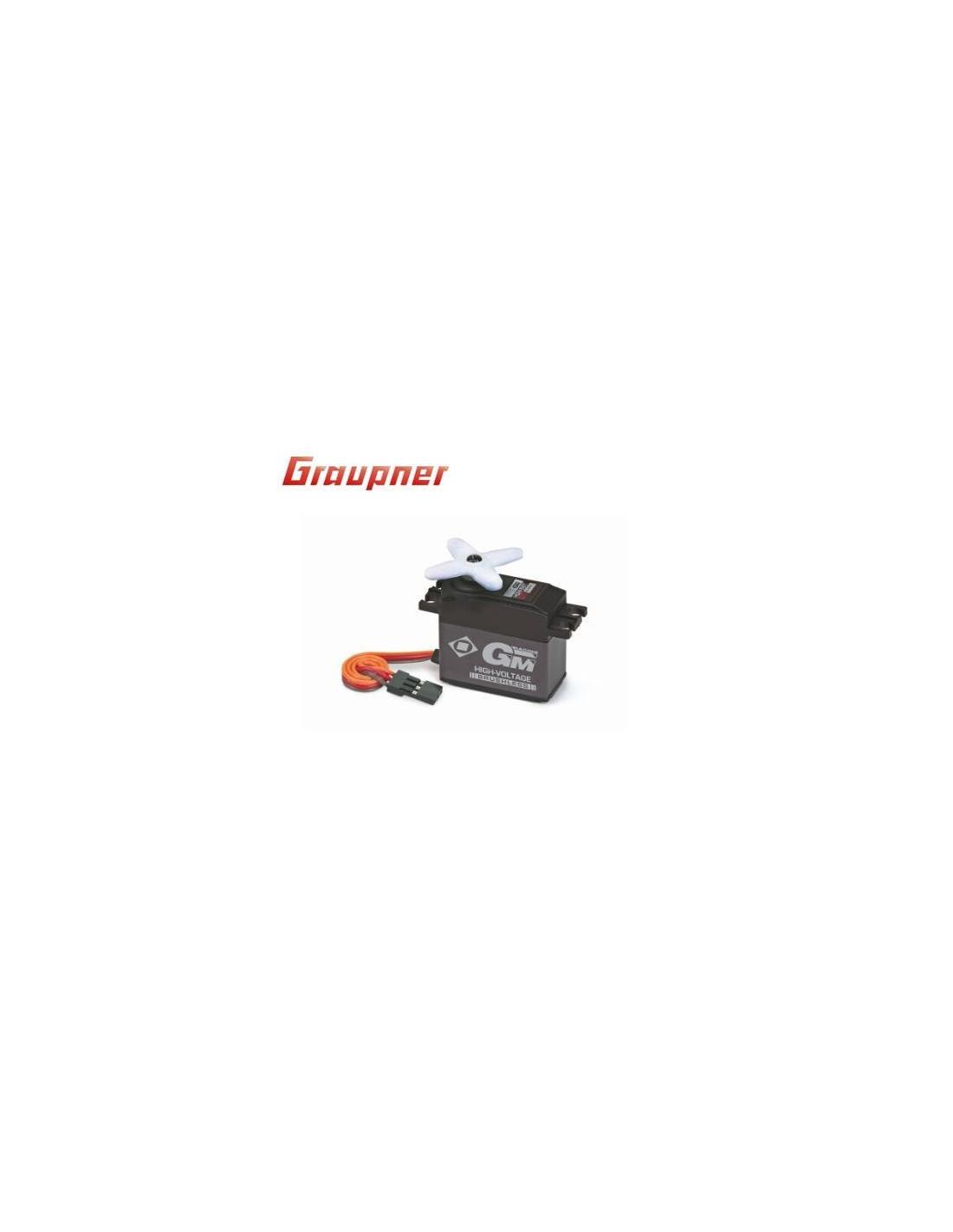

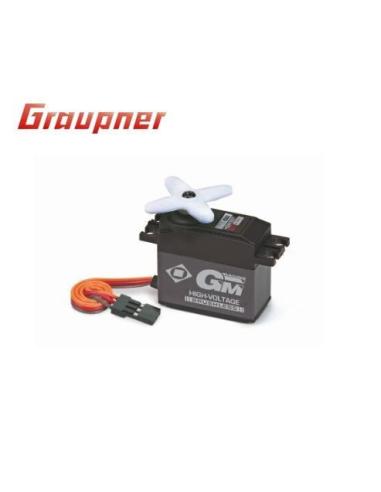

94051 - Servo HGM SST BB, MG 20 mm

94051 - Servo HGM SST BB, MG 20 mm

94051
No disponible - Contacte con nosotros
59,00 €
Impuestos incluidos
GM High-Voltage Brushless Servos. Servo para dirección coches escala 1/10 y 1/8.


Notificarme cuando esté disponible




Dimensions (LxWxH) 40 x 19,5 x 40  mm
Operating voltage 4,8 ... 8,4  V
Angular travel incl. trim, approx. 2 x 45  °
Replacement gearbox 94051.2
Gear unit Getriebe mg
All-up weight, approx. 58  g
Holding torque 6.0V, approx. 200  N/cm
Holding torque 7.4V, approx. 220  N/cm
Bearings Lager bb2x
No-load current drain, approx. 35  mA
Torque at 6.0V, approx. 90  N/cm
Torque at 7.4V, approx. 105  N/cm
Transit speed at 6.0 V, approx. 0,06  Sek/40°
Transit speed at 7.4V, approx. 0,05  Sek/40°
Charging rate at 6.0V approx. 2430  mA
Charging rate of 7.4V approx. 2980  mA





MODELO_DE_SERVO
Analógico
