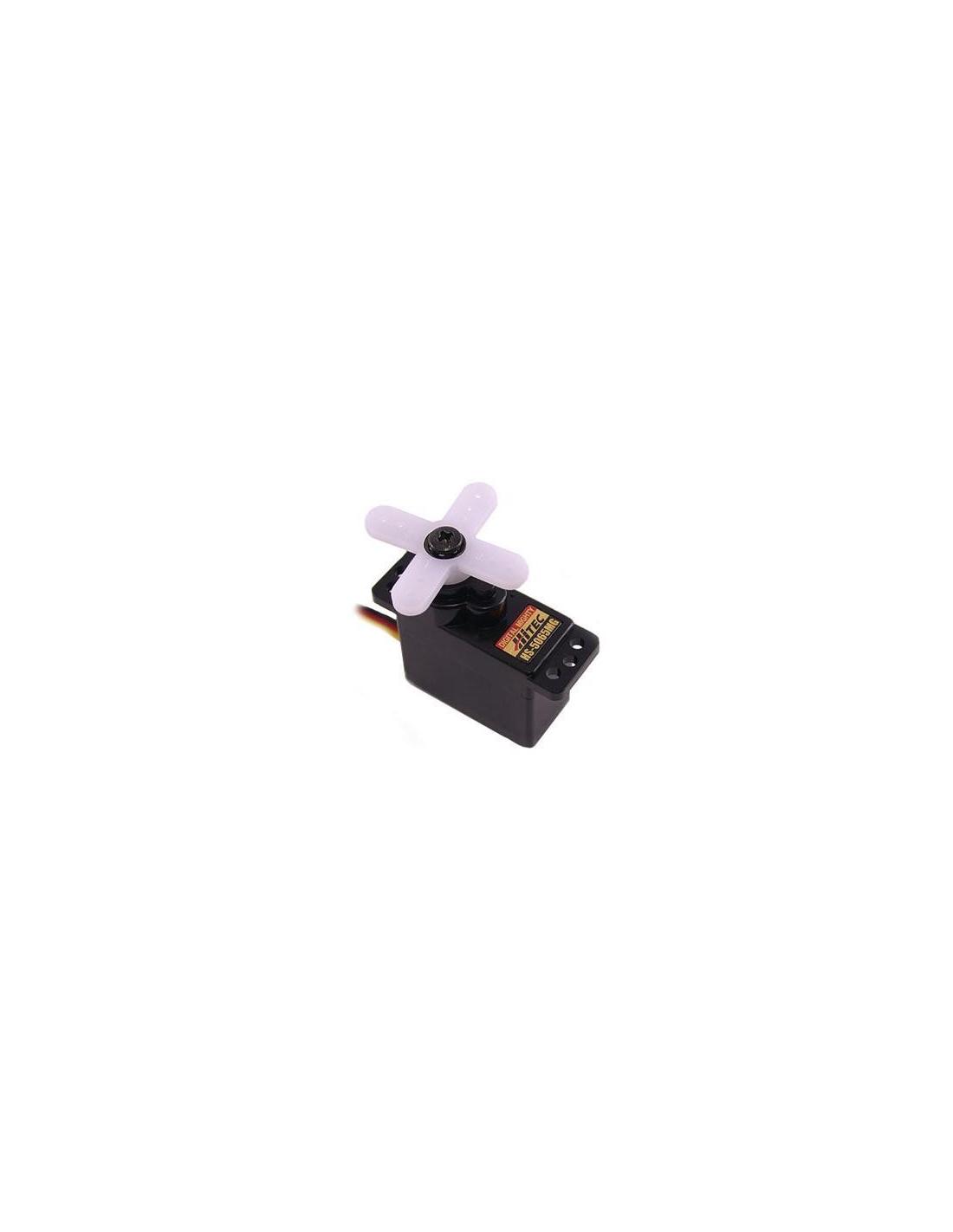

Detailed Specifications
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
Operating Voltage Range: 4.8-6.0 Volts
Operating Temperature Range: -20° to +60° C (-4°F to +140°F)
Operating Speed (4.8V): 0.14 sec/60° at no load
Operating Speed (6.0V): 0.11 sec/60° at no load
Stall Torque (4.8V): 24.99oz/in. (1.8kg.cm)
Stall Torque (6.0V): 30.55oz/in. (2.2kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
3Continuous Rotation Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Idle Current Drain (4.8V): 3mA at stop
Idle Current Drain (6.0V): 3mA at stop
Current Drain (4.8V): 200mA/idle and 2.0 amps at lock/stall
Current Drain (6.0V): 240mA/idle and 3.0 amps at lock/stall
Dead Band Width: 2usec
Motor Type: Carbon Brush
Potentiometer Drive: 6 Slider Indirect Drive
Bearing Type: Top Ball Bearing
Gear Type: Metal Gears
Connector Wire Length: 7" (178mm)
Dimensions: See Schematics
Weight: .42oz (11.9g)
- MODELO_DE_SERVO
- Digital
