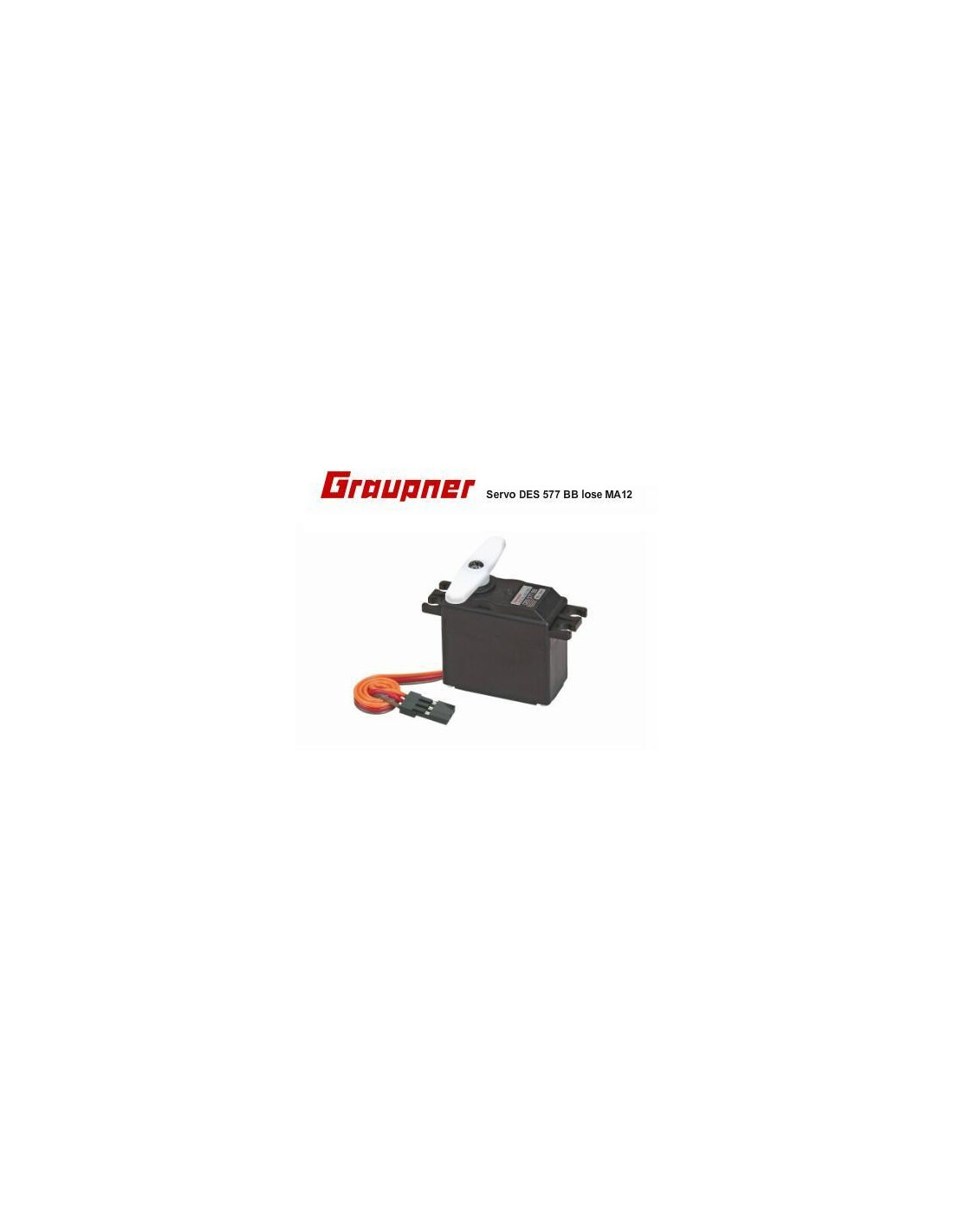

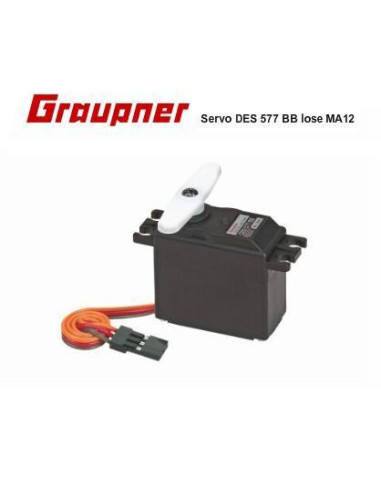

Servo Digital DES 577 BB Graupner

Servo Digital DES 577 BB Graupner

7944.lose
No disponible - Contacte con nosotros
18,50 €
Impuestos incluidos
Servo Digital DES 577 BB Graupner




Dimensions (LxWxH) 39,5 x 19,5 x 39  mm
Operating voltage 4,8 ... 6,0  V
Angular travel incl. trim, approx. 2 x 45  °
Gear unit Getriebe cg
All-up weight, approx. 36  g
Holding torque 4.8V, approx. 44  N/cm
Holding torque 6.0V, approx. 54  N/cm
Bearings Lager bb
No-load current drain, approx. 6  mA
Torque at 4.8V, approx. 42  N/cm
Torque at 6.0V, approx. 52  N/cm
Transit speed at 4.8V, approx. 0,135  Sek/40°
Transit speed at 6.0 V, approx. 0,1  Sek/40°
Charging rate at 4.8V approx. 710  mA
Charging rate at 6.0V approx. 840  mA











MODELO_DE_SERVO
Digital
