97286 Motor Brushless GM PRO 6T delta wound SW
97286
Reserva previo pago
28,89 €
Impuestos incluidos

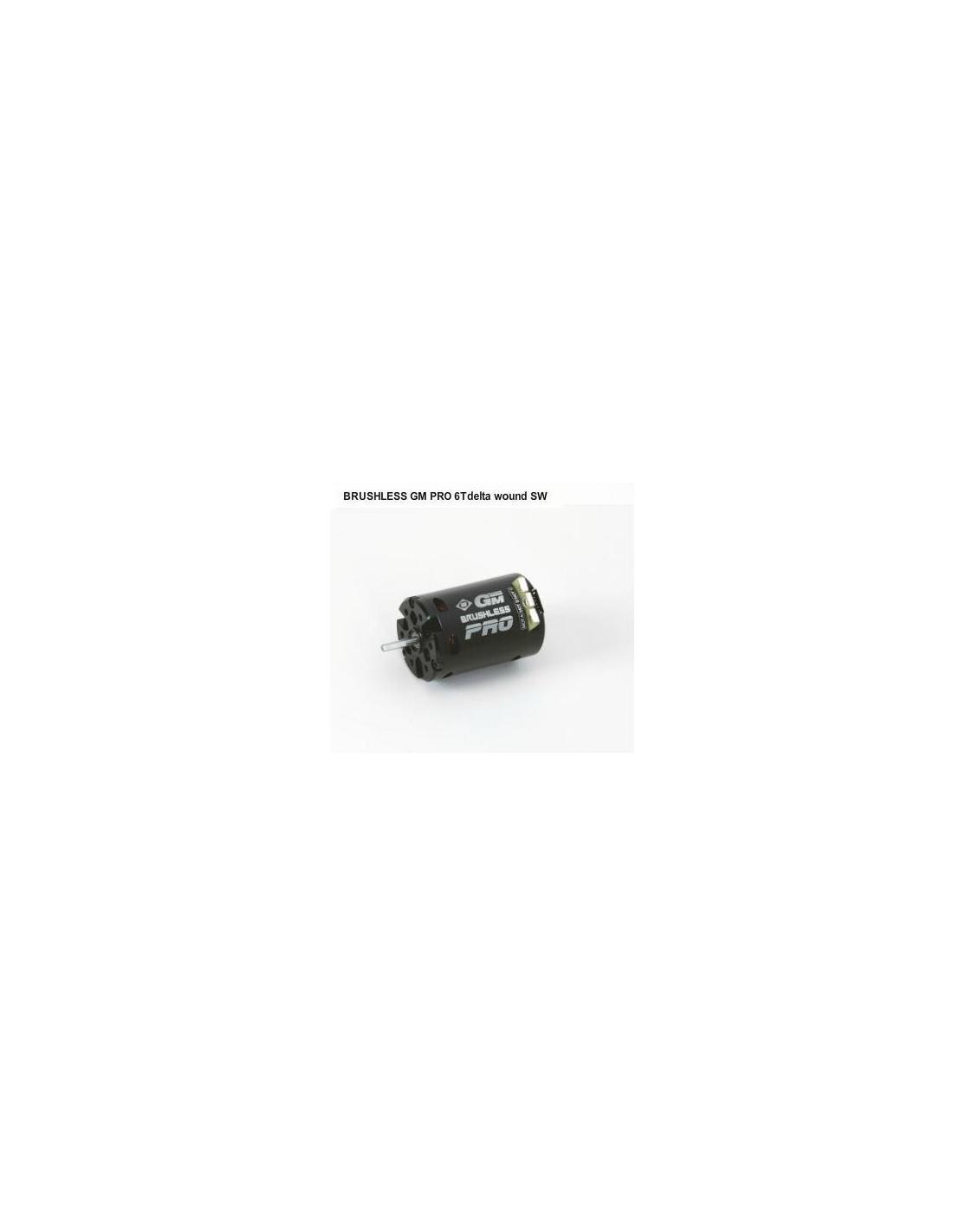

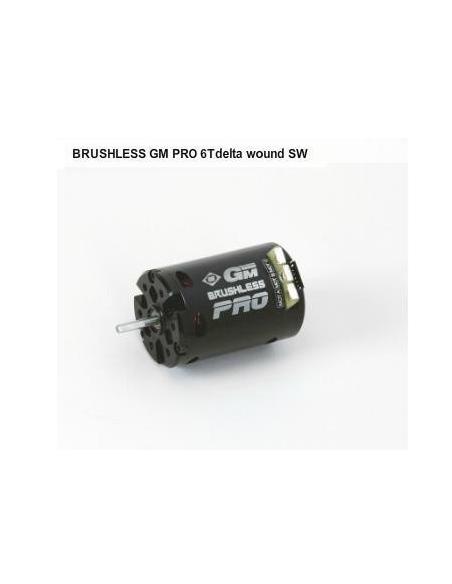

Motor Brushless GM PRO 6T delta wound SW para coche RC
Especificaciones:
| Number of poles | 2 | |
| Operating voltage range | 3,7 ... 7,4 | V |
| Recommended controller | 97168 | |
| Free shaft length | 15 | mm |
| Case length | 51,5 | mm |
| Case diameter | 35,8 | mm |
| All-up weight, approx. | 170 | g |
| Overall length, approx. | 68 | mm |
| LiPo battery, Order No. | 98996 - 98998 | |
| Magnet | gesintert 12,5 mm | |
| Max. output at 7.2V | (1,09 PS) 805 | W |
| Max. output at nominal voltage | 530 | W |
| Nominal voltage | 6,0 | V |
| Charging rate at max. output at 7.2V | 350 | A |
| Charging rate at max. output at nominal voltage | 290 | A |
| Charging rate at max. efficiency | 95 | A |
| Charging rate at max. efficiency at 7.2V | 100 | V/A |
| Transmission | 1:10 Tourenwagen 1:7 ... 1:10 | |
| Revolutions/Volt | 9200 | |
| Shaft diameter | 3,17 | mm |
| Turns | 6 T delta | |
| Permissible motor direction | R und L |
