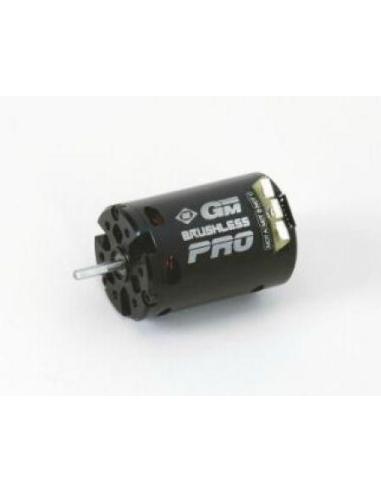

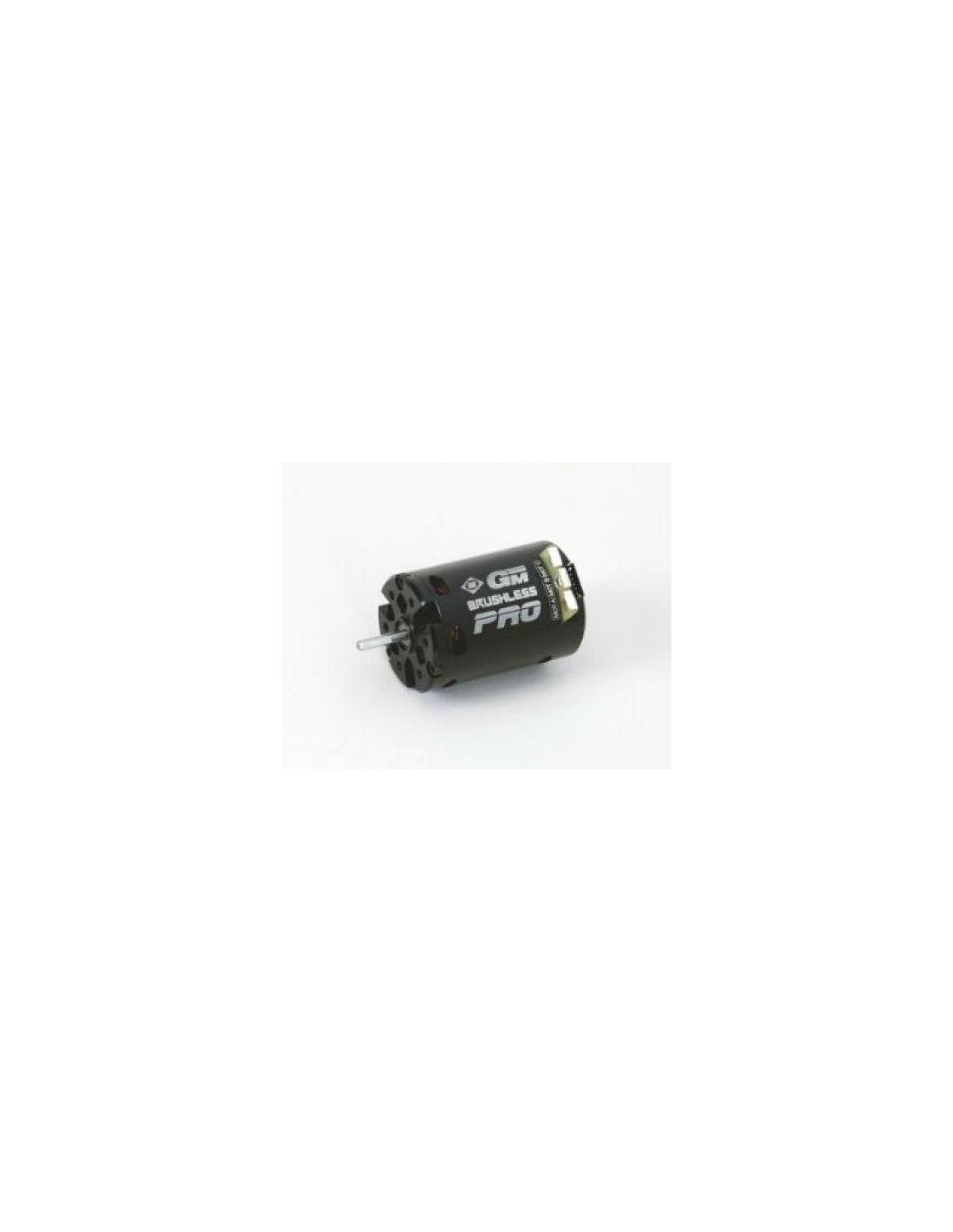

Motor Brushless Competición Coche 8T Graupner GMRacing

    * Peso muy ligero: sólo aprox. 165 g
    * Bajo Consumo
    * devanados múltiples extra-gruesa
    * Imanes de neodimio
    * Sensores en conformidad con IFMAR / EFRA / normas DMC
    * Legal para competiciones EFRA y DMC
    * Timming fijo
    * Cojinetes de alto rendimiento
    * Posibilidad de utilizar variadores con Sensorless

Características:

Nominal voltage: 7.2V
Operating voltage range: 4.8 ... 7.4 V
Revs / Volt approx 7400
Turns: 8T Dreiecksw delta.
Power consumption at max. Efficiency of approximately 7.2V: 75A
Power consumption at max. Approximately 7.2V power: 145A
Max power at 7.2 V: 580W
Maximum power at 6 V: 415W
Power at 4.8 V: 260W
Permissible motor direction: R and L
Number of poles: 2
Overall length in 70 mm
Body length approximately 52.5 mm in
Approximately 35.8 mm in diameter
Free shaft 15
Shaft diameter at output at 3.175 mm
Weight approx 165g
Translation recommendation for 6 cells: 1:10 model cars, 4WD TW 1:5-1:8.0 1:12.5-1:15
Recommended controller: GM-Genius 95 + # 2894.11 or GM-Genius 100
