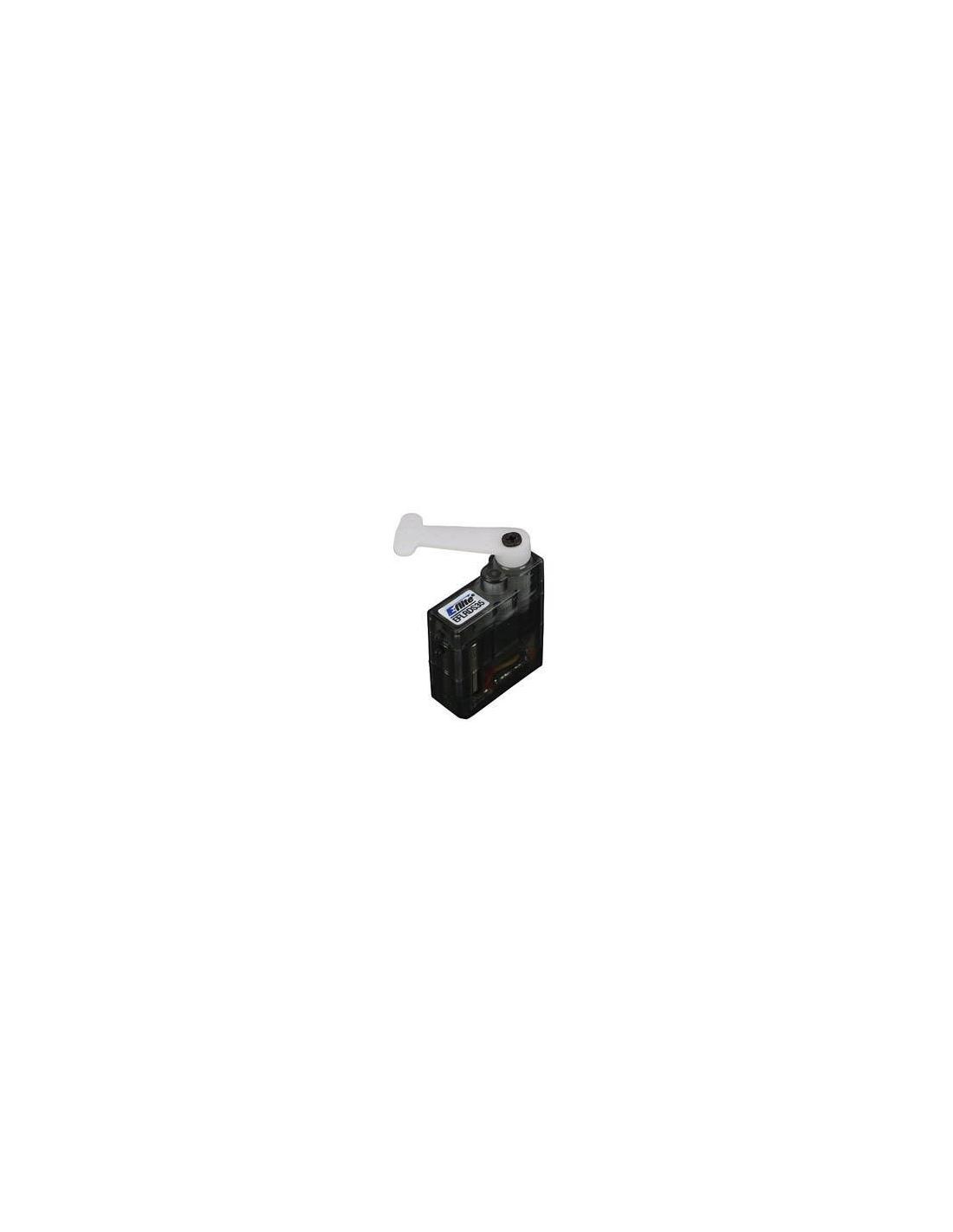

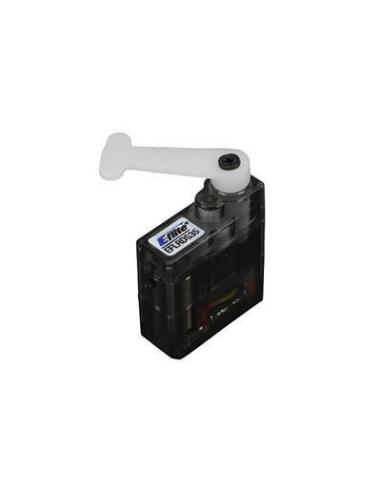

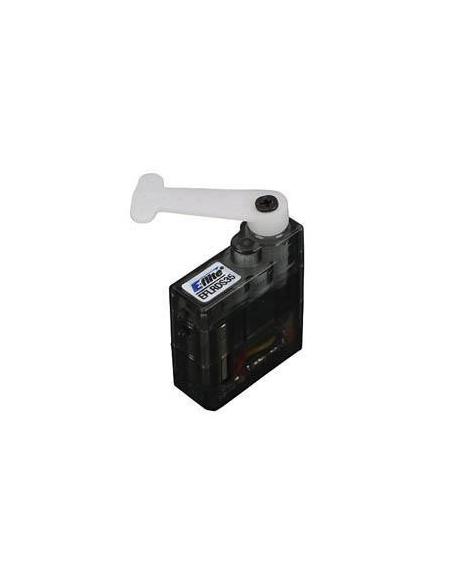

3.5-Gram DS35 Digital Super Sub-Micro Servo
3.5-Gram DS35 Digital Super Sub-Micro Servo

3.5-Gram DS35 Digital Super Sub-Micro Servo

eflrds35
En stock
18,00 €
Impuestos incluidos
Micro servo digital 3.5-Gram DS35 para Blade 130X



Product Specifications

Size Category: Minis and Micros
Type: Digital
Application: Sub-micro and Micro-sized airplanes and helis
Torque: 4.0 oz-in (0.29kg-cm) @ 4.8V; 3.2 oz-in (0.23kg-cm) @ 3.7V
Speed: 0.05 sec/60° @ 4.8V; 0.06 sec/60° @ 3.7V
Length: 0.68 in (17.5mm)
Width: 0.25 in (6.4mm)
Height: 0.85 in (21.8mm)
Weight: 0.125 oz (3.5g)
Motor Type: Coreless
Connector Type: JST-ZHR (1.5mm)
Gear Type: Nylon
Current Draw Idle: 30mA @ 4.8V; 20mA @ 3.7V
Current Draw Stall: 350mA @ 4.8V; 230mA @ 3.7V
Voltage: 3.0V-5.0V DC
Deadband: <1μs



Key Features

  • Digital amplifier for superior accuracy, response and holding torque
  • High speed, 0.05 sec @ 60° @ 4.8V for quick control response
  • Precise centering - less than 1°
  • Lightweight, just 3.5 grams
  • Includes convenient clip mount and mounting hardware
  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
  • JST-ZHR (1.5mm) connector is compatible with Spektrum Nanolite AR6300 & AR6310 receivers
  • Optional connector adapters are available to work with most major brand receivers









MODELO_HELI
Blade 130X
