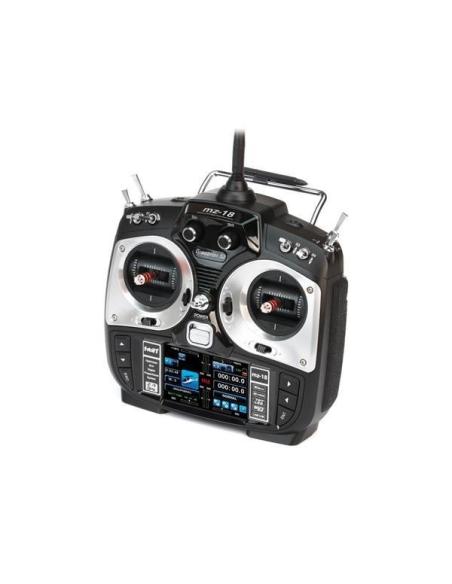

Graupner MZ-18 HOTT de 9 canales 2.4Ghz + GR24

Features:

• RECEPTOR DE 6 CANALES DE REGALO
• HoTT (HOPPING TELEMETRY TRANSMISSION) bi-directional 2.4 GHz technology
• The use of up to 75 frequency hopping channels ensures extreme operating reliability and immunity to external interference.
• 3.5" clolor TFT LCD with specialized touch pannel and user friendly interface
• Smart voice announcement system (Speaker and Earphone) for warnings and alarms at real time
• Real-time data analysis with optional sensor (GPS, Fuel status, Temperature, Voltage, Current) and sensor board (General air module, General engine module)
• Real-time telemetry analysis for Brushless Control Telemetry ESC such as RPM, consumption current, voltage, ESC temperature, Warning'
• Advanced HoTT wired/wireless trainer system
• Multi binding receiver system that 2 receivers can be connected in paralleled to use additional servos
• High-precision quad ball bearing gimbals (total 8ea) lead the smooth and comfortable stick feeling
• Standard micro SD Memory cards to sharemodel setup, expand model memeory
• 30 model memories
• Model copy function for model memories
• Staying up to date with the latest Graupner/SJ Firmware
• Programming options:
• 30 model memories(Available to expand model memory, using SD card)
• 6 Q.link functions
• 3 Model types(Helicopter, Airplane, Glider)
• Helicopter Function
• Q.link function x 6
• 6 swash plate types (1 Servo, 2 Servo 180, 3 Servo 120, 3 Servo 140, 3 Servo(Elevator), 4 Servo 90)
• Pitch Curves (7-point)
• Throttle Curves(7-point)
• Pitch, Throttle Trim function x 6
• Swash Limit function
• Swash Limit mix function
• Program mixing x 8(Liner Program mixing x 5, Curve mixing x 3)
• Throttle mixing function(AILE>>THRO, ELEV>>THRO, RUDD>>THRO)
• Airplane Function
• Q.link function x 6
• 8 wing type(Delta wing included)
• 3 tail type
• Wing mixing(RUDD>>AILE, AILE>>RUDD, RUDD>>ELEV)
• Program mixing x 8(Liner Program mixing x 5, Curve mixing x 3)
• Snap roll function
• Aileron Diff function
• Flap sett function
• Airbrake function
• Idle Low function
• Glider Function
• Q.link function x 6
• 8 wing type(Delta wing included)
• 3 tail type
• Wing mixing(RUDD>>AILE, AILE>>RUDD, RUDD>>ELEV)
• Program mixing x 8(Liner Program mixing x 5, Curve mixing x 3)
• Aileron Diff function
• Flap MIX function(FLAP, AILE>>FLAP, ELEV>>FLAP, FLAP>>ELEV)
• Flap sett function
• Butterfly function

Specification:

Control function: 9
Temperature range : -10...+55 °C
Aerial length: 120 mm
All-up weight, approx.: 840 g
Frequency : 2400...2483,5 MHz
Range approx. : 4000 m
Dimensions (LxWxH): 194 x 287 x 112 mm
Modulation: FHSS
Charging rate : 510 mA
Operating voltage : 3,4...6,0 V
