A7100 MT-MS Metal Gear HV Wing Servo
SPMSA7100
En stock bajo demanda, entrega de 15 a 16 días después de su compra
109,99 €
Impuestos incluidos
A7100 MT/MS Metal Gear HV Wing Servo
Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
In The Box

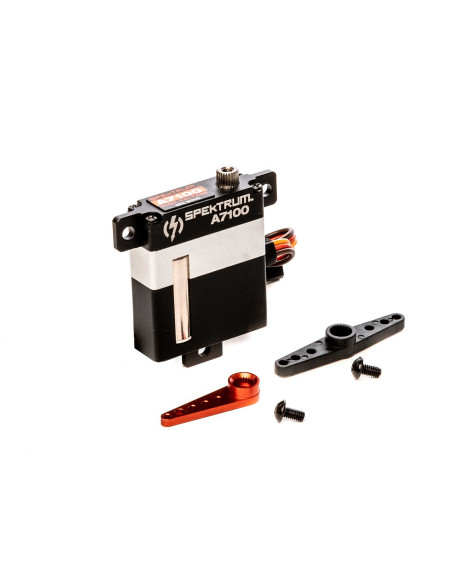

- (1) A7100 Wing Servo
- (1) Double-sided Plastic Servo Arm
- (1) One Inch Red Anodized Aluminum Servo Arm
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
A7100 Mid Torque Mid Speed HV MG Thin Wing Servo
The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.
Product Specifications
| Application | Airplane |
| Bearing | Single Ball Bearing |
| Bushing Or Bearing | Bearing |
| Connector Type | Universal |
| Deadband | <1µs |
| Gear Type | Metal |
| Input Voltage | 4.8V-8.4V |
| Maximum Servo Speed | 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V |
| Overload Protection | No |
| Product Application | Sailplane |

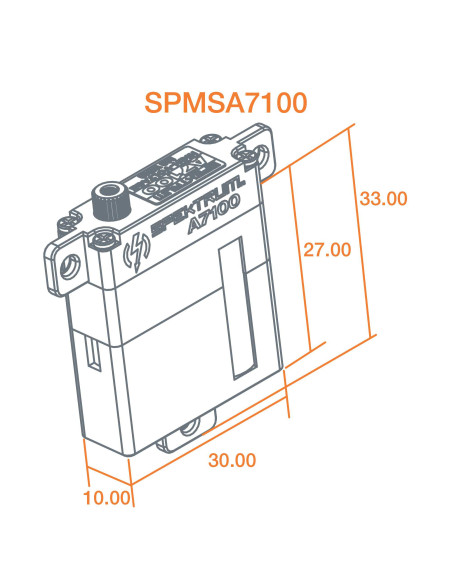

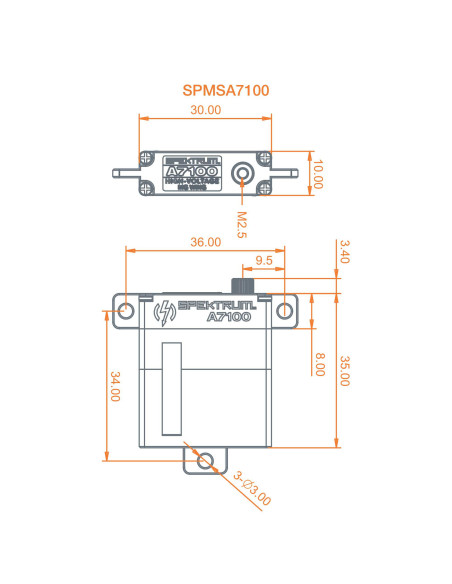

| Product Height | 1.38" (35 mm) |
| Product Length | 1.18" (30 mm) |
| Product Weight | 1.0 oz (28g) |
| Product Width | 0.39" (10 mm) |
| Programmable | No |
| Prop 65 |
 |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Servo Size Category | Thin Wing |
| Servo Type | Digital |
| Spline Count | 25 - Tooth |
| Water-Resistant | No |
