2000022
Consultar disponibilidad
39,95 €
Impuestos incluidos

4-Channel Stick Radio "SR4S" 2.4GHz incl. Receiver



4-Channel Stick Radio "SR4S" 2.4GHz incl. Receiver
2000022

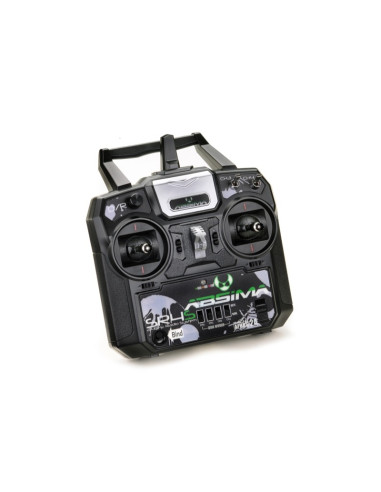

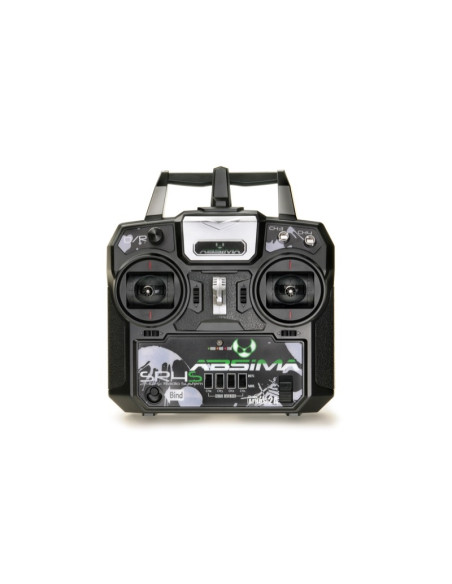

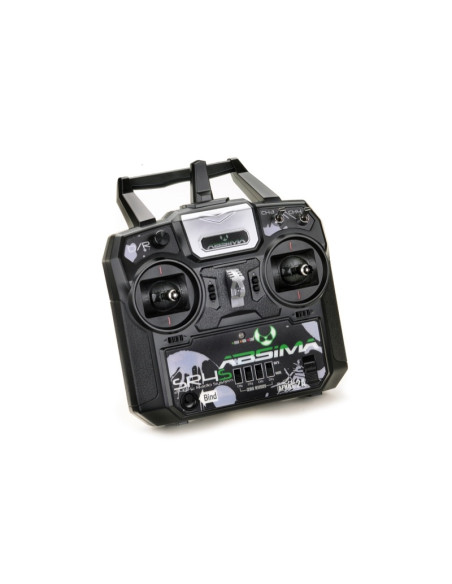

The new SR4S remote control is the basis for every model fan who prefers to operate a joystick rather than reach for the steering wheel and is also the successor to our incredibly popular "SR2S" 2-channel stick remote control. The lighter and slimmer design ensures that your hands won't get tired even on longer trips. In addition, the 6V (4* AA) operating voltage reduces the functional weight by 40%!

Equipped with the following standard functions:

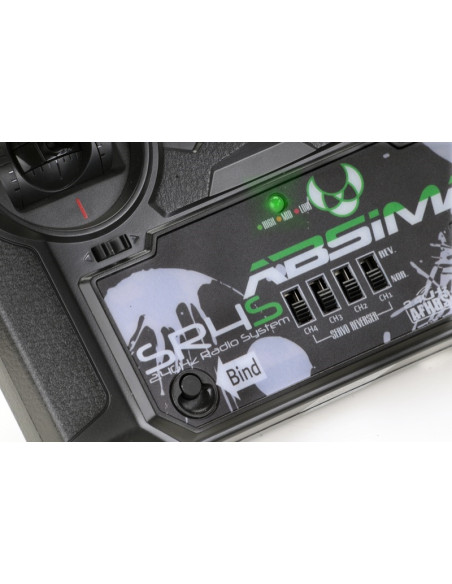

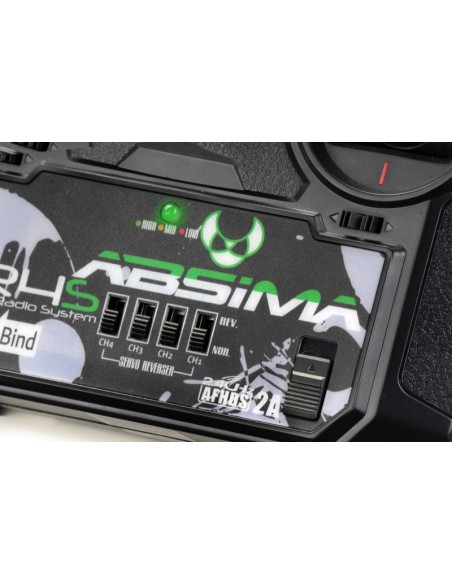

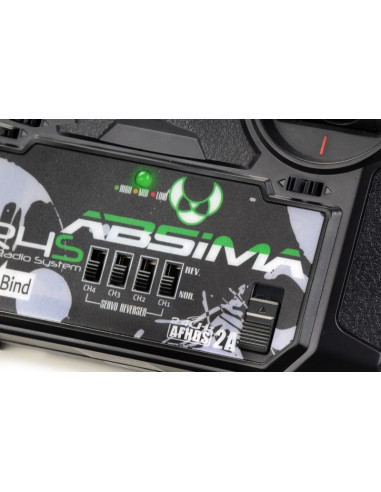

  • Servo Reverse (the direction of rotation/switching of the individual channels can be changed using this function)
  • Trim-Function for throttle and steering (setting the throttle neutral position and straight-ahead running)

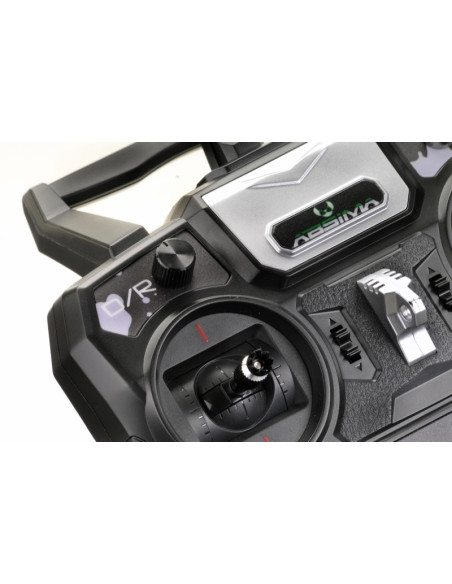

  • ST. D/R Function for setting the servo travel limit (steering servo only)

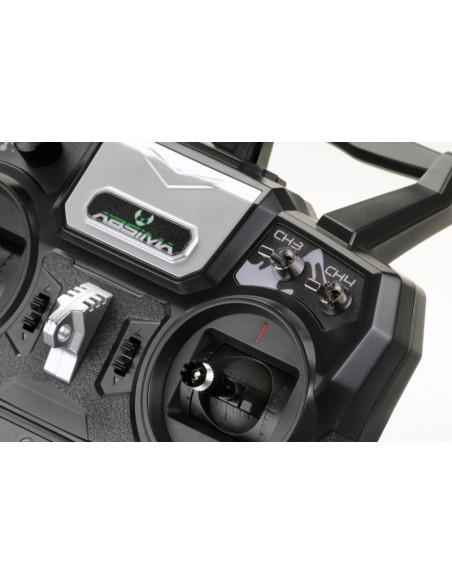

There are also channels 3 & 4 for free assignment, which can be operated via 2 toggle switches.

2000022_03kopie.jpg     2000022_05kopie.jpg

2000022_04kopie.jpg     2000022_08kopie.jpg

2000022_07kopie.jpg     2000022_06kopie.jpg

Radio Specification:
  • 4 channel
  • Frequency: 2.4GHz
  • Protocol: AFHDS 2A

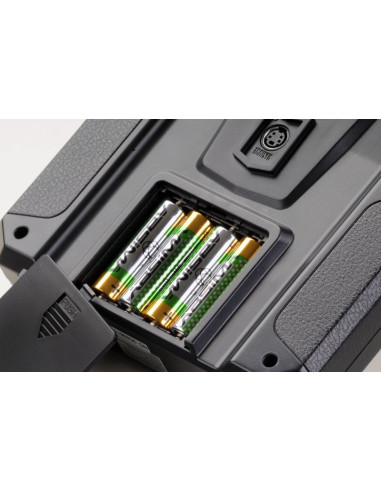

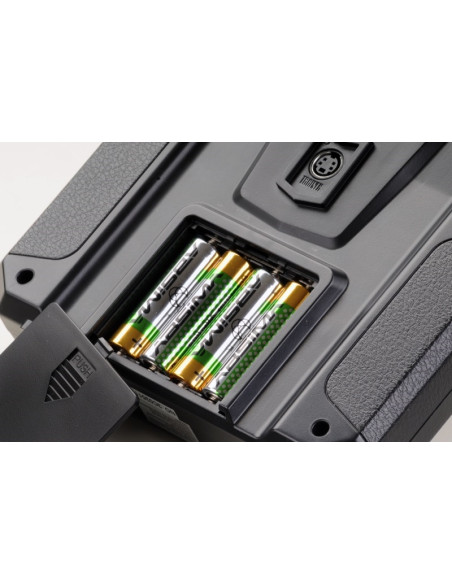

  • Operating voltage: 6V DC (4* 1.5V AA Mignon)
  • Low V Alarm: below 4.2V
  • Temperature: 0°C - +60°C
  • Weight: 320g
  • Dimensions: 190*174*89mm

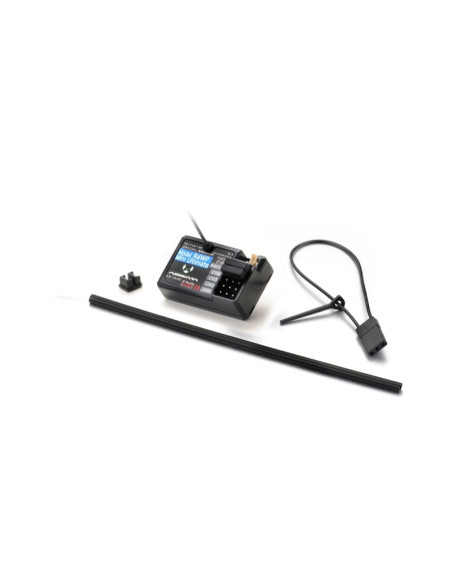

Receiver Specification:
  • 2020012 - 4 channel mini receiver
  • Frequency: 2.4GHz
  • Protocol: AFHDS 2A
  • Waterproof: Yes
  • Operating voltage: 4.8V-7.4V
  • Dimmensions: 35x30x13mm
  • Weight: 15g
  • Aerial length: 260mm

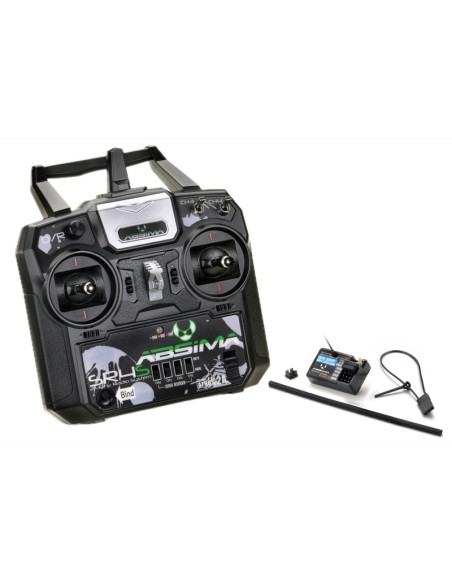

Scope of delivery:
  • SR4S radio
  • R4WP receiver
  • Bind plug
  • Aerial tube
  • Manual


A selection of suitable receivers and other extras can be found on this page under "accessories, etc."
