VM275T 5.8G 48CH 25mw VTX Video...

VM275T 5.8G 48CH 25mw VTX Video Transmission 520TVL Camera compatible with OSD

En stock
29,90 €
Impuestos incluidos

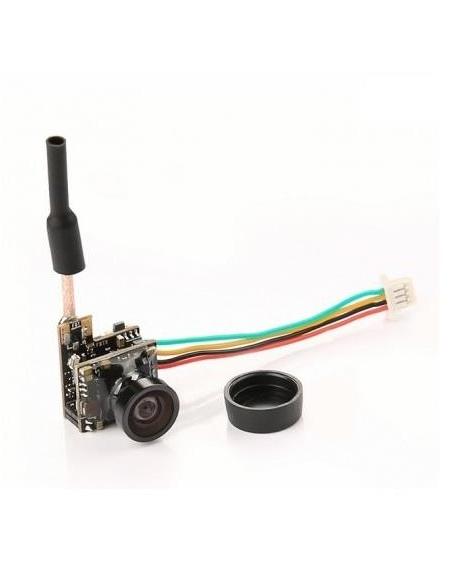

Micro cámara FPV con transmisor de 48 canales 25mw.



-La cámara más pequeña del mundo.
-FPV Micro AIO Camera 5.8G 48CH 25mW Transmitter with micro JST 1.25 to 2 Pin wafer cable 1.5cm Y splitter for tiny whoop Blade Inductrix .
- Peso 3.6g.
-Tamaño 47 * 14.8 * 12.5 mm.
-Supporting touch switch select channel Frequency group,Supporting NTSC/PAL switch, Support vertical inverted image switch.
-8LED display channel and 6LEDS display frequency group information, 1LED display NTSC and FLIP information.
-Wide lens angle. Miniature and light weight design


Frequency band:5362-5945 MHz
Channel customer:48
Channel SEL.:Touch Switch
Channel Indicate:CHI-CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6LEDS
Transmit power:13 ±1dBm
Frequency control:PLL
All harmonic:Max-50dBm
Frequency Stability: ±100KHz(Typ.)
Frequency precision: ±200KHz(Typ.)
Channel Carrier error:1dB
Antenna Port:50Ω
Input format:NTSC
SENSOR:PAL:720X540/NTSC:640X480 1/4"
LENS ANGEL:H:120°/V:100°
Base -band interface:P1.27*2
Power consumption:[email protected] DCIN
Supply Voltage:2.9-5.5v
Operating Temperature:-10℃~+60℃
Profile dimension:14.5mmX12.2mm+14.5mmX12mm
