ADS-5 V2 4.5kg Waterproof Servo Red
ARAM1011
En stock bajo demanda, entrega de 15 a 16 días después de su compra
30,00 €
Impuestos incluidos

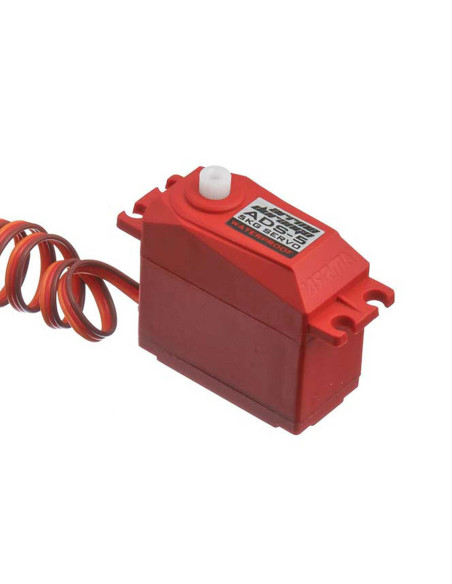

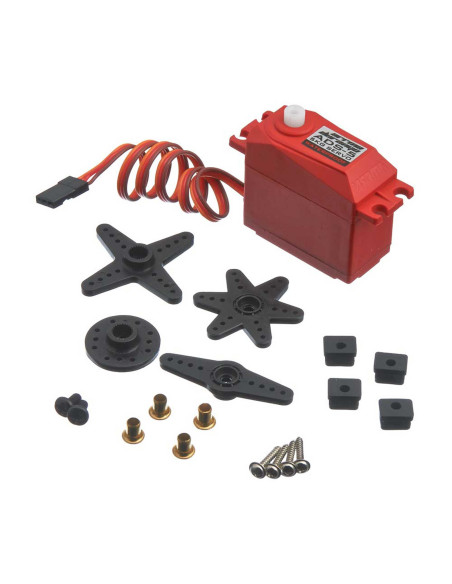

ADS-5 V2 4.5kg Waterproof Servo, Red
Product Details
The ADS-5 V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – HD Composite
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry standard size
Wire length: 300mm
Torque –
Speed – 0.14 sec/0.12 sec 4.8V/6V
Signal – Analogue
Product Specifications
| Application | Cars, Trucks |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Connector Type | Universal |
| Connector Wire Length | 11.81" (300 mm) |
| Gear Type | Composite |
| Input Voltage | 4.8V ~ 6.0V |
| Manufacturer # | AR390133 |
| Maximum Servo Speed | 0.14 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 6.0V |
| Maximum Servo Torque | 70oz/in @ 6.0V |
| Product Height | 1.48" (38 mm) |
| Product Length | 1.57" (40 mm) |
| Product Width | 0.78" (20 mm) |
| Programmable | No |
| Servo Operating Voltage | 4.8 - 6.0V |
| Servo Size Category | Standard |
| Servo Type | Analog |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
