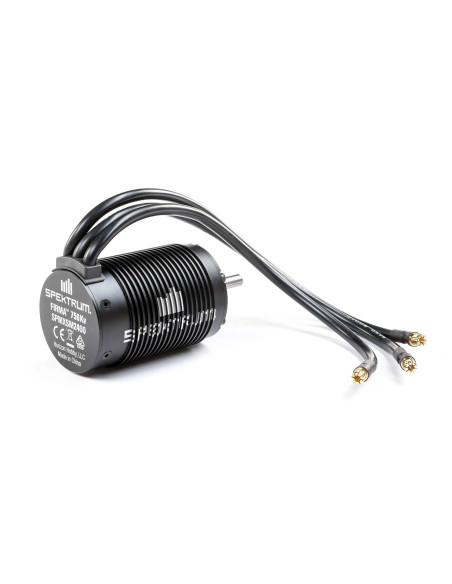

Firma 5687-750Kv 4-Pole Brushless Motor

Referencia SPMXSM2400

En stock bajo demanda, entrega de 2 a 4 días después de su compra

215,99 €

Impuestos incluidos

Product Details

Key Features

4S LiPo Capable
Low Cog 4-Pole 8-Magnet Rotor Design
Alloy steel 8mm Output Shaft

In The Box

Firma 5687 - 750Kv 4-Pole Brushless Motor

Needed to Complete

150A ESC

Overview

The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
High efficiency design
4S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft

Product Specifications

Application	1/6 scale buggies, truggies or monster trucks with 3S-8S Lipo powered setup
Connector Type	6.5mm Bullet
Efficiency	87%
Input Voltage	3S - 8S LiPo
Maximum Continuous Current	80A
Motor Design	Inrunner
Motor Size	5687
Motor Type	Brushless
Number of Poles	4
Outer Diameter	2.2" (56 mm)
Output	3950W
Product Length	3.43" (87 mm)
Product Weight	2.08lbs (947g)
RPM/Volt (Kv)	750Kv
Sensored	No
Shaft Diameter	0.314" (8 mm)
