Motor ION 2205 2500KV IPower Motor...

Motor ION 2205 2500KV IPower Motor IFlight

ion2205
No disponible - Contacte con nosotros
15,90 €
Impuestos incluidos

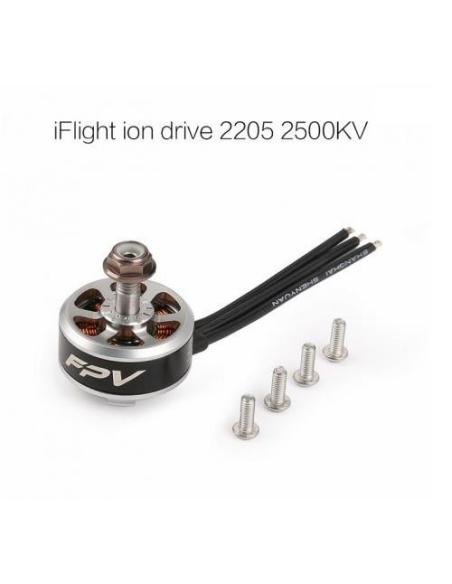

Motores ION 2205 2500KV IFlight RC para dron de carreras.


Características:

-7075 milled aluminium Bell and Base
-NMB Japan 4mm bearings
-High temperature magnets and windings
-N52H Arc Magnets
-Hex bolt shaft set screw
-Dynamically balanced
-Single strand wounded,

Especificaciones:

KV: 2500
Configuration: 12N14P
Shaft Diameter: 4mm
AWG: 18#
Internal Resistance: 42mΩ
Motor Dimensions (Dia.*Len): Φ28.4×17mm
Weight with wires(g): 34.5g
Weight without wires(g): 29.8g
ldle current@10v(A): 1.8A
No.of Cells(Lipo): 3-4S
Max Continuous Power 180s: 438W
Max Continuous Current 180s: 34.5A
Cable length: 70mm

Test Datas:

Motor Type

Voltage

Propeller

Throttle

Current(A)

Power(W)

Pull(g)

RPM

efficiency

Ion Drive

2205 2500kv

16.8V

GENFAN 5152

100

33.4

549

1411

26100

2.13

GENFAN5051

100

33.8

643

1388

25550

2.23

GEPRC5040

100

32.8

515

1302

26900

2.09

iFlight5061

100

38.9

657

1573

25050

2.33

DAL5045

100

34.8

543

1328

26400

2.13
